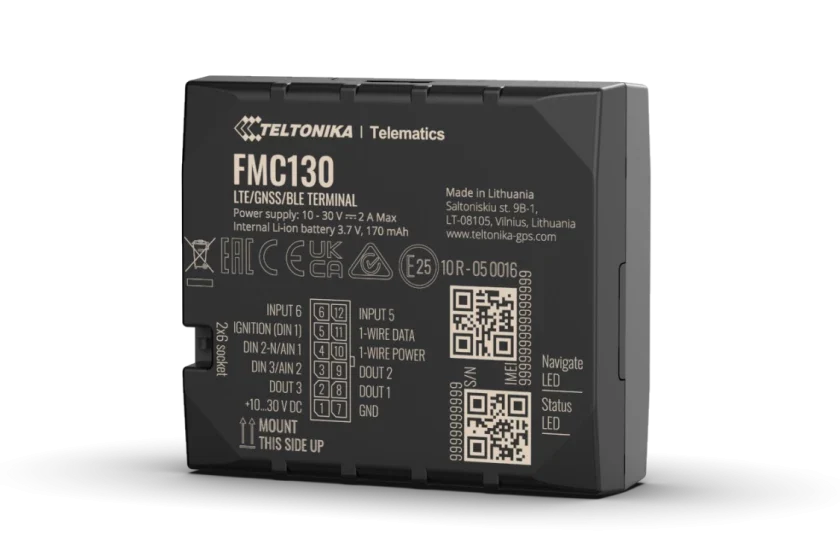

Teltonika FMC130 CAN Bus Features Explained

The Teltonika FMC130 goes beyond basic GPS tracking by connecting directly to a vehicle's CAN bus — the internal communication network that links the engine, transmission, body control modules and other systems. Through this connection, the FMC130 can read live vehicle data including fuel level, engine RPM, odometer readings and diagnostic fault codes. For Australian fleet operators, this capability transforms a GPS tracker into a comprehensive vehicle intelligence platform.

Table of Contents

• What Is CAN Bus?
• How the FMC130 Connects to CAN Bus
• What Data Can the FMC130 Read?
• CAN Bus Adapters for Australian Vehicles
• Fuel Monitoring via CAN Bus
• Engine and Maintenance Data
• Driver and Safety Data
• Diagnostic Trouble Codes (DTCs)
• CAN Bus vs OBD-II: What Is the Difference?
• Which Australian Vehicles Are Compatible?
• Fleet Management Benefits
• Limitations and Considerations
• Frequently Asked Questions

What Is CAN Bus?

CAN bus (Controller Area Network) is a communication protocol used in modern vehicles to allow electronic control units (ECUs) to communicate with each other without a central computer. It carries real-time data about engine performance, fuel consumption, vehicle speed, door status, seatbelt use and much more.

By tapping into this network, the FMC130 can retrieve data that would otherwise require separate sensors or manual inspection — making it far more powerful than a standard GPS tracker that only reports location.

How the FMC130 Connects to CAN Bus

The FMC130 connects to the vehicle's CAN bus via two wires: CAN High (CAN H) and CAN Low (CAN L). These lines are typically accessible at the vehicle's OBD-II diagnostic port, located under the dashboard on the driver's side in most passenger vehicles and light commercial vehicles.

For vehicles where CAN bus data is not accessible via the OBD-II port, or where a specific CAN protocol adapter is required, Teltonika offers compatible adapters such as the LV-CAN200 and ALL-CAN300. These adapters decode vehicle-specific CAN data and present it to the FMC130 in a standardised format.

Confirm the correct connection method and adapter requirements for your specific vehicle with Teltonika documentation or contact Techtonika Autolink for advice.

What Data Can the FMC130 Read?

The specific data available via CAN bus depends on the vehicle make, model and year. Common data parameters that the FMC130 can read include:

• Fuel level — live fuel tank percentage or litres remaining
• Fuel consumption — instantaneous and cumulative fuel used
• Engine RPM — live engine speed
• Vehicle speed — from the vehicle's own speed sensor (more accurate than GPS speed in some conditions)
• Odometer — total distance travelled as recorded by the vehicle's ECU
• Coolant temperature — engine operating temperature
• Battery voltage — vehicle electrical system voltage
• Seatbelt status — driver seatbelt fastened or unfastened
• Door status — open or closed events for cab doors
• Diagnostic Trouble Codes (DTCs) — engine and system fault codes
• Axle load — available on some heavy vehicles
• Tachograph data — available on some European-specification trucks

Not all parameters are available on all vehicles. Confirm available data for your vehicle type with Teltonika documentation.

CAN Bus Adapters for Australian Vehicles

Many popular Australian fleet vehicles require a dedicated CAN adapter to unlock full data access. Teltonika's adapter range includes:

• LV-CAN200 — designed for light vehicles, connects via the OBD-II port and decodes vehicle-specific CAN data for a wide range of passenger cars and light commercial vehicles
• ALL-CAN300 — supports a broader range of vehicles including trucks and buses
• CAN-CONTROL — provides additional control outputs for vehicle systems

Adapter compatibility varies by vehicle. Teltonika maintains a vehicle compatibility database — check the Teltonika Wiki or contact Techtonika Autolink to confirm which adapter is required for your fleet vehicles.

Fuel Monitoring via CAN Bus

Fuel is one of the largest operating costs for Australian fleets. The FMC130's CAN bus fuel monitoring capability allows fleet managers to:

• Track fuel consumption per trip, per driver and per vehicle
• Identify excessive idling that wastes fuel
• Detect sudden fuel level drops that may indicate fuel theft or a leak
• Compare actual fuel consumption against expected benchmarks
• Generate fuel reports for accounting and tax purposes

CAN bus fuel data is generally more accurate than external fuel sensors because it reads directly from the vehicle's own fuel measurement system. For a detailed guide to fuel monitoring with the FMC130, see Using FMC130 for Fuel Monitoring.

Engine and Maintenance Data

The FMC130 can use CAN bus data to support proactive vehicle maintenance:

• Engine hours — track total engine running time for service interval scheduling
• Coolant temperature alerts — notify managers if a vehicle is running hot
• Battery voltage monitoring — detect failing batteries before they cause breakdowns
• Service reminders — configure alerts based on odometer or engine hours thresholds

For construction and mining fleets in Queensland, Western Australia and the Northern Territory, where vehicles operate in harsh conditions and breakdowns are costly, this data can significantly reduce unplanned downtime.

Driver and Safety Data

CAN bus data complements the FMC130's accelerometer-based driver behaviour monitoring by adding vehicle-sourced data:

• Seatbelt status — log and alert when a driver is not wearing a seatbelt
• Vehicle speed from ECU — cross-reference with GPS speed for accuracy
• Door events — detect unauthorised access or driver stops

Combining CAN bus data with GPS tracking and accelerometer events gives fleet managers a comprehensive picture of driver behaviour and vehicle use. See the FMC130 Driver Behaviour Monitoring Guide for more detail.

Diagnostic Trouble Codes (DTCs)

When a vehicle's check engine light illuminates, the ECU stores a Diagnostic Trouble Code (DTC). The FMC130 can read and transmit these codes to the fleet platform, allowing managers to:

• Identify fault codes remotely without a physical OBD scan
• Prioritise vehicles for workshop inspection
• Reduce the risk of drivers ignoring warning lights
• Maintain a log of fault history for each vehicle

DTC reading capability depends on the vehicle's CAN bus implementation and the adapter used. Confirm DTC support for your vehicle with Teltonika documentation.

CAN Bus vs OBD-II: What Is the Difference?

OBD-II (On-Board Diagnostics II) is a standardised diagnostic interface found in most vehicles manufactured after 1996. It provides access to a subset of vehicle data via a standardised connector and protocol.

CAN bus is the underlying communication network within the vehicle. The FMC130 can access CAN bus data either through the OBD-II port (which exposes some CAN data in a standardised format) or by connecting directly to the CAN bus wires for deeper, vehicle-specific data.

Using a Teltonika CAN adapter alongside the FMC130 typically provides access to more data parameters than a standard OBD-II connection alone.

Which Australian Vehicles Are Compatible?

CAN bus compatibility varies widely. Common Australian fleet vehicles with good CAN bus data availability include:

• Toyota HiLux, LandCruiser and HiAce
• Ford Ranger and Transit
• Isuzu NPR, NPS and NQR trucks
• Hino 300 and 500 series
• Mercedes-Benz Sprinter
• Volkswagen Crafter

Older vehicles and some specialist machinery may have limited or no CAN bus data available. Contact Techtonika Autolink to confirm compatibility for your specific fleet vehicles before purchasing.

Fleet Management Benefits

For Australian fleet operators, CAN bus integration with the FMC130 delivers:

• Reduced fuel costs through accurate consumption monitoring and idle reduction
• Lower maintenance costs through proactive fault detection and service scheduling
• Improved driver safety through seatbelt and behaviour monitoring
• Better compliance with ATO logbook and fleet reporting requirements
• Reduced insurance risk through documented vehicle condition and driver behaviour data

Limitations and Considerations

• CAN bus data availability varies by vehicle make, model and year — not all parameters are available on all vehicles
• A vehicle-specific CAN adapter may be required, adding to installation cost
• CAN bus connection requires professional installation to avoid damaging vehicle electronics
• Some vehicles use proprietary CAN protocols that may not be fully supported
• Confirm all data parameters and adapter requirements with the latest Teltonika documentation

Frequently Asked Questions

Does every vehicle support CAN bus data with the FMC130?

No. CAN bus data availability depends on the vehicle's make, model and year. Most modern vehicles (post-2005) support CAN bus, but the specific data parameters available vary. A compatible adapter may be required.

Do I need a CAN adapter for my vehicle?

Many vehicles require a Teltonika LV-CAN200 or ALL-CAN300 adapter to access full CAN bus data. Contact Techtonika Autolink to confirm the correct adapter for your vehicle.

Can the FMC130 read fuel level from any vehicle?

Fuel level data is available on many vehicles via CAN bus, but not all. Availability depends on the vehicle's CAN implementation. Confirm with Teltonika documentation or contact Techtonika Autolink.

Can the FMC130 clear diagnostic fault codes?

The FMC130 can read and report DTCs but is not designed to clear fault codes. Clearing codes requires a dedicated OBD scan tool or workshop equipment.

Is CAN bus connection safe for my vehicle?

Yes, when installed correctly by a qualified technician. The FMC130 reads data from the CAN bus passively and does not send commands to vehicle systems (unless an immobilisation relay is connected). Incorrect wiring can cause issues — professional installation is essential.

What is the difference between CAN bus and OBD-II data?

OBD-II provides standardised access to a subset of vehicle data. CAN bus provides access to a broader range of vehicle-specific data, often including parameters not available via the standard OBD-II interface.

Conclusion

The Teltonika FMC130's CAN bus capability is one of its most valuable features for Australian fleet operators. By reading live vehicle data directly from the ECU, it enables fuel monitoring, maintenance alerts, driver safety tracking and fault code reporting — all from a single device.

For fleets operating across Sydney, Melbourne, Brisbane, Perth and regional Australia, this level of vehicle intelligence helps reduce operating costs, improve safety and keep vehicles on the road longer.

Ready to Get Started?

View the Teltonika FMC130 product page or contact Techtonika Autolink to discuss CAN bus compatibility for your fleet vehicles, request a quote or arrange professional installation.
