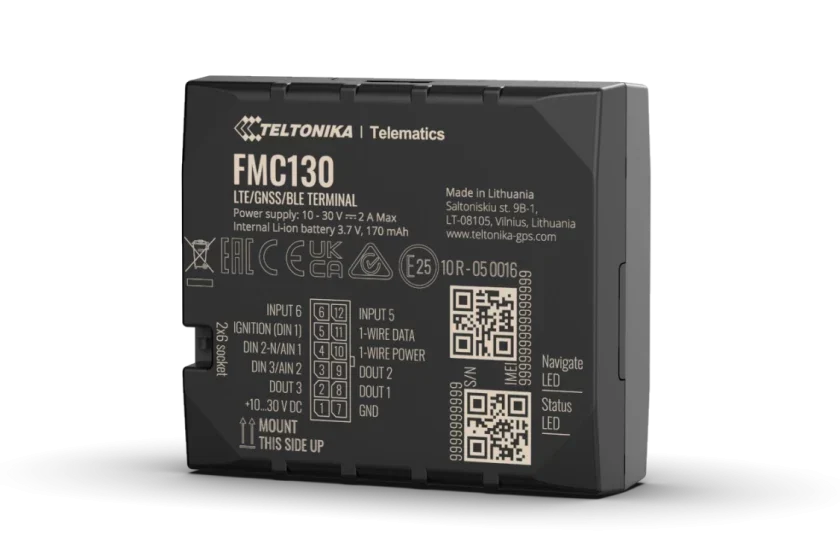

Teltonika FMC130 vs FMC234: Which 4G GPS Tracker Is Right for Your Fleet?
Both the Teltonika FMC130 and the Teltonika FMC234 are professional-grade 4G LTE hardwired GPS trackers designed for fleet and vehicle tracking. They share the same network technology and core tracking capabilities, but differ in their I/O count, CAN bus options and suitability for complex installations. For most Australian fleet applications, the FMC130 delivers everything needed at a lower cost. The FMC234 is the better choice when you need more inputs, outputs or advanced CAN bus integration. This guide helps you decide which device suits your business.
Table of Contents
- Quick Comparison Summary
- What They Have in Common
- Key Differences
- Feature Comparison Table
- I/O Count: When Does It Matter?
- CAN Bus Capabilities
- BLE Support
- Installation Complexity
- Which Device Is Right for Your Application?
- Australian Business Use Cases
- Buying Considerations
- Frequently Asked Questions
Quick Comparison Summary
The FMC130 is Teltonika's mid-range 4G hardwired tracker — capable, compact and cost-effective for standard fleet applications. The FMC234 is a more advanced device with a higher I/O count, making it suited to complex installations that require multiple sensor inputs, additional outputs or more sophisticated vehicle data integration. Both devices are fully compatible with Australian 4G networks.
What They Have in Common
- 4G LTE Cat 1 connectivity with 2G fallback
- GNSS multi-constellation positioning
- CAN bus interface for vehicle data
- BLE support for external sensors
- Accelerometer for driver behaviour monitoring
- Geofencing, trip logging and configurable alerts
- Remote configuration via Teltonika Configurator
- Remote firmware updates (FOTA)
- Compatible with leading fleet management platforms
- Hardwired installation requiring professional fitting
Key Differences
The primary differences between the FMC130 and FMC234 relate to the number of digital and analogue inputs and outputs, and the depth of CAN bus integration available. The FMC234 provides more I/O channels, making it suitable for installations that require multiple accessories, sensors or control outputs connected simultaneously.
Confirm exact I/O counts, CAN bus options and all specifications with the latest Teltonika product documentation for each device, as specifications may vary between hardware revisions.
Feature Comparison Table
| Feature | FMC130 | FMC234 |
|---|---|---|
| Network | 4G LTE Cat 1 + 2G | 4G LTE Cat 1 + 2G |
| GNSS | Multi-constellation | Multi-constellation |
| CAN bus | Yes | Yes (extended options) |
| BLE | Yes (BLE 4.0) | Yes (BLE 4.0) |
| Digital inputs | 2 | 4 (confirm with docs) |
| Digital outputs | 1 | 4 (confirm with docs) |
| Analogue inputs | 1 | 2 (confirm with docs) |
| Accelerometer | Yes | Yes |
| Immobilisation | Yes (via DOUT) | Yes (via DOUT) |
| 1-Wire support | Confirm with docs | Confirm with docs |
| Installation complexity | Standard | Higher |
| Best for | Standard fleet tracking | Complex multi-sensor installs |
All I/O counts and specifications should be confirmed with the latest Teltonika product documentation.
I/O Count: When Does It Matter?
For the majority of Australian fleet tracking applications, the FMC130's I/O count is sufficient. A typical installation uses:
- DOUT1 for an immobilisation relay
- DIN1 for a panic button or door sensor
- AIN1 for an analogue fuel sensor (if not using CAN bus fuel data)
The FMC130 handles all of these without issue. The FMC234 becomes the better choice when your installation requires:
- Multiple door sensors or accessory inputs simultaneously
- Multiple output controls (e.g., immobilisation relay plus a secondary output for lighting or PTO control)
- Additional analogue sensor inputs (e.g., dual temperature probes on a refrigerated vehicle)
- Complex multi-accessory configurations on heavy vehicles or specialised equipment
CAN Bus Capabilities
Both the FMC130 and FMC234 support CAN bus connectivity for reading live vehicle data. The FMC234 may offer extended CAN bus options for more complex vehicle integrations — confirm the specific CAN bus capabilities and supported adapters for each device with Teltonika documentation.
For standard Australian fleet vehicles including light commercial vehicles, trucks and buses, the FMC130's CAN bus capability is typically sufficient. For heavy plant, specialised vehicles or applications requiring deep CAN integration, the FMC234 may provide additional flexibility.
BLE Support
Both devices support BLE 4.0 for connecting external sensors and accessories. BLE functionality is equivalent between the two devices for standard applications including driver ID tags, temperature sensors and tyre pressure monitors. Confirm compatible BLE accessories with Teltonika documentation.
Installation Complexity
The FMC130 is simpler to install due to its lower I/O count and more straightforward wiring harness. The FMC234's additional I/O channels add installation complexity, particularly when multiple accessories are connected. Both devices require professional hardwired installation by a qualified auto electrician.
For fleet deployments where installation speed and consistency across many vehicles is important, the FMC130's simpler installation profile is an advantage. For specialist vehicles requiring complex sensor integration, the FMC234's additional I/O justifies the extra installation effort.
Which Device Is Right for Your Application?
Choose the FMC130 if you need:
- Standard real-time GPS tracking and trip reporting
- CAN bus vehicle data (fuel, RPM, odometer, DTCs)
- Driver behaviour monitoring
- Geofencing and speed alerts
- Remote immobilisation via a single relay
- BLE sensor connectivity (one or two sensors)
- A cost-effective solution for a standard fleet vehicle
Choose the FMC234 if you need:
- Multiple digital inputs for several sensors or accessories simultaneously
- Multiple digital outputs for controlling more than one relay or accessory
- Additional analogue inputs for multiple sensor types
- Complex vehicle integrations on heavy plant or specialised equipment
- Advanced CAN bus integration beyond standard fleet data
Australian Business Use Cases
FMC130: Sydney Delivery Fleet
A Sydney-based courier company with 30 vans needs real-time tracking, driver behaviour scoring, geofencing and CAN bus fuel monitoring. The FMC130 covers all of these requirements at a competitive price point, making it the right choice for a straightforward fleet deployment.
FMC130: Brisbane Tradie Fleet
A plumbing business in Brisbane wants to track five work utes, monitor after-hours movement and add a panic button to each vehicle. The FMC130's two digital inputs and one output handle the panic button and immobilisation relay without issue.
FMC234: Perth Mining Support Fleet
A Perth-based mining services company needs to track heavy support vehicles with multiple door sensors, a PTO output for equipment monitoring, dual temperature probes in the cargo area and an immobilisation relay. The FMC234's higher I/O count makes it the appropriate choice for this complex installation.
FMC234: Refrigerated Transport
A Melbourne cold-chain logistics operator needs to monitor two separate temperature zones in each refrigerated vehicle alongside standard GPS tracking and CAN bus data. The FMC234's additional analogue inputs support dual temperature sensor connections that the FMC130 cannot accommodate simultaneously.
Buying Considerations
- Map out all the accessories and sensors you need to connect before choosing a device
- If your I/O requirements fit within the FMC130's capability, choose the FMC130 for lower cost and simpler installation
- If you need more than two digital inputs, more than one digital output or more than one analogue input, evaluate the FMC234
- Confirm all I/O counts and CAN bus specifications with the latest Teltonika documentation before purchasing
- Both devices require a fleet management platform subscription — confirm platform compatibility before purchasing
- Factor in professional installation costs for both devices
Frequently Asked Questions
Is the FMC234 better than the FMC130?
Not necessarily — it depends on your application. The FMC234 has more I/O channels, which is valuable for complex installations. For standard fleet tracking, the FMC130 delivers equivalent core functionality at a lower cost. Choose based on your specific I/O and integration requirements.
Can the FMC130 connect to multiple BLE sensors?
Yes. The FMC130 supports BLE 4.0 and can connect to multiple compatible BLE sensors simultaneously. Confirm the maximum number of simultaneous BLE connections with Teltonika documentation.
Do both devices work with the same fleet platforms?
Both the FMC130 and FMC234 are compatible with fleet management platforms that support Teltonika hardware. Confirm platform compatibility with your provider before purchasing.
Is the FMC234 harder to install than the FMC130?
The FMC234 has more wiring connections due to its higher I/O count, which adds installation complexity. Both devices require professional hardwired installation. Allow additional installation time for the FMC234 when multiple accessories are connected.
Which device is better for a car rental business?
For most car rental applications — real-time tracking, geofencing, mileage monitoring and remote immobilisation — the FMC130 is sufficient and more cost-effective. See FMC130 for Car Rental Businesses for a detailed guide.
What is the price difference between the FMC130 and FMC234?
Pricing varies by supplier and market conditions. Contact Techtonika Autolink for current pricing on both devices and advice on which is the best fit for your fleet.
Conclusion
The Teltonika FMC130 and FMC234 are both excellent 4G GPS trackers for Australian fleet applications. The FMC130 is the right choice for the majority of standard fleet tracking deployments — it covers all core requirements at a competitive price with simpler installation. The FMC234 is the better option when your installation demands more I/O channels, multiple sensor connections or advanced CAN bus integration.
If you are unsure which device suits your fleet, Techtonika Autolink can help you assess your requirements and recommend the right solution.
Get Expert Advice
View the Teltonika FMC130 product page or contact Techtonika Autolink to discuss which device is right for your fleet, request a quote or arrange professional installation across Australia.
