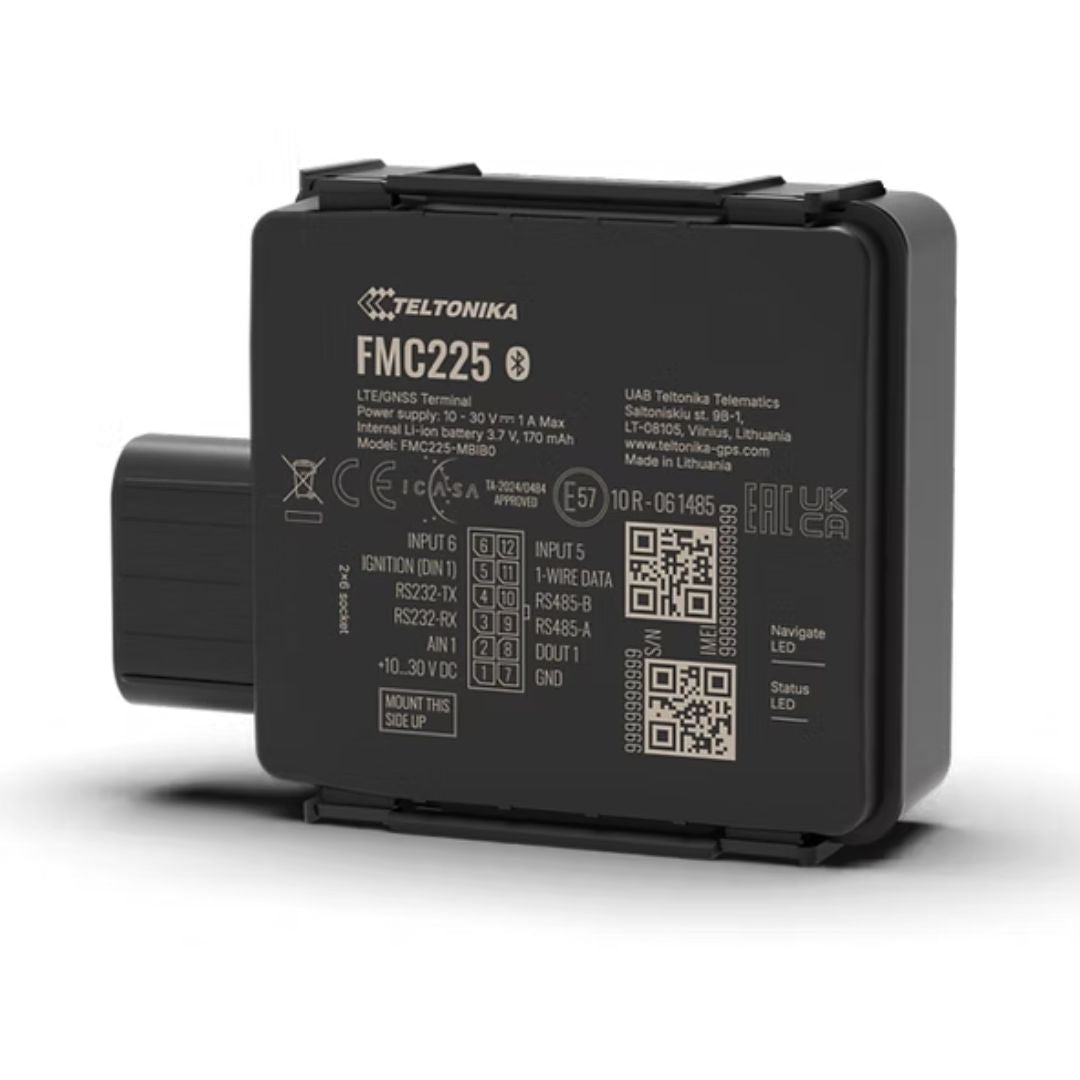

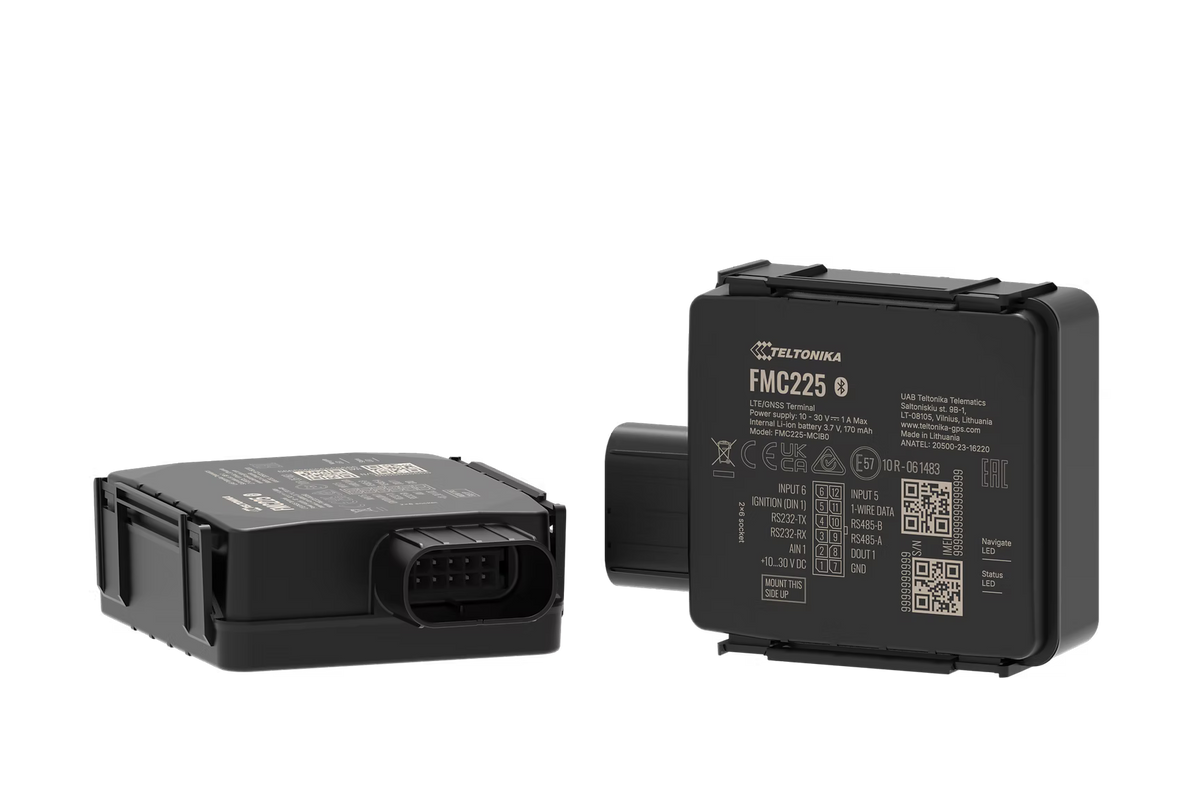

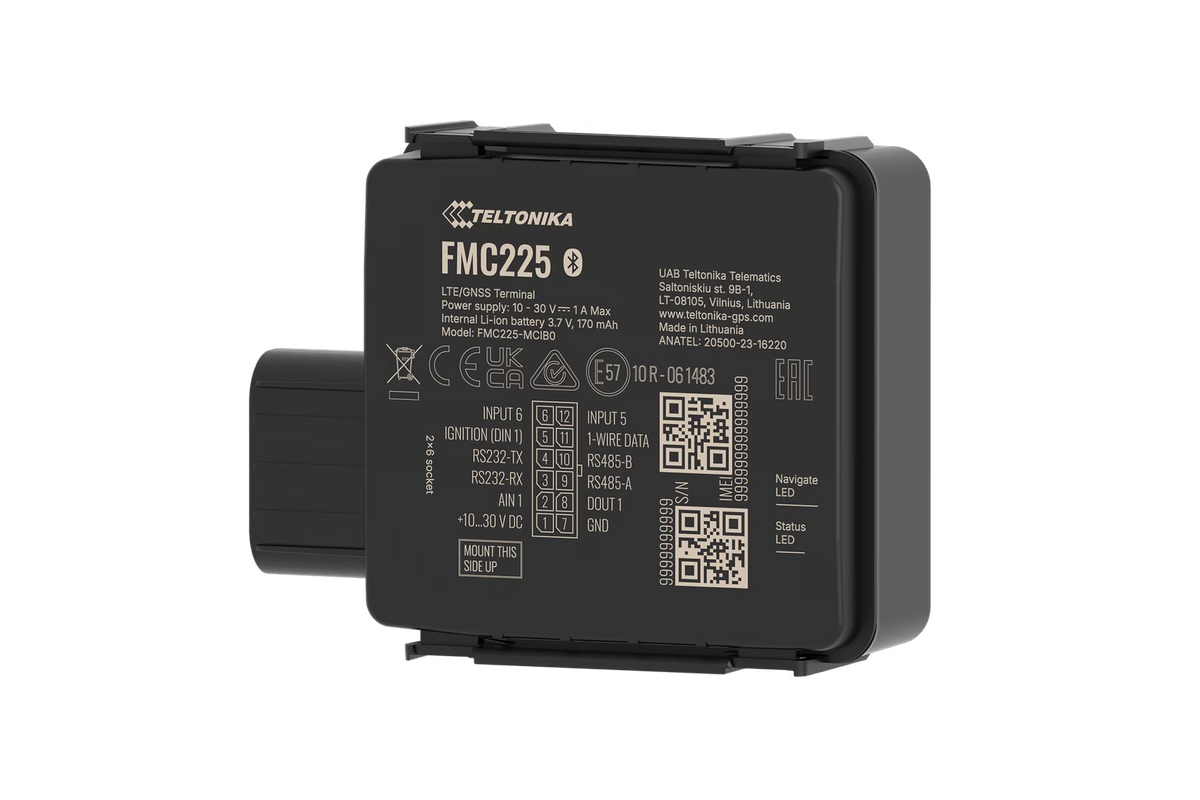

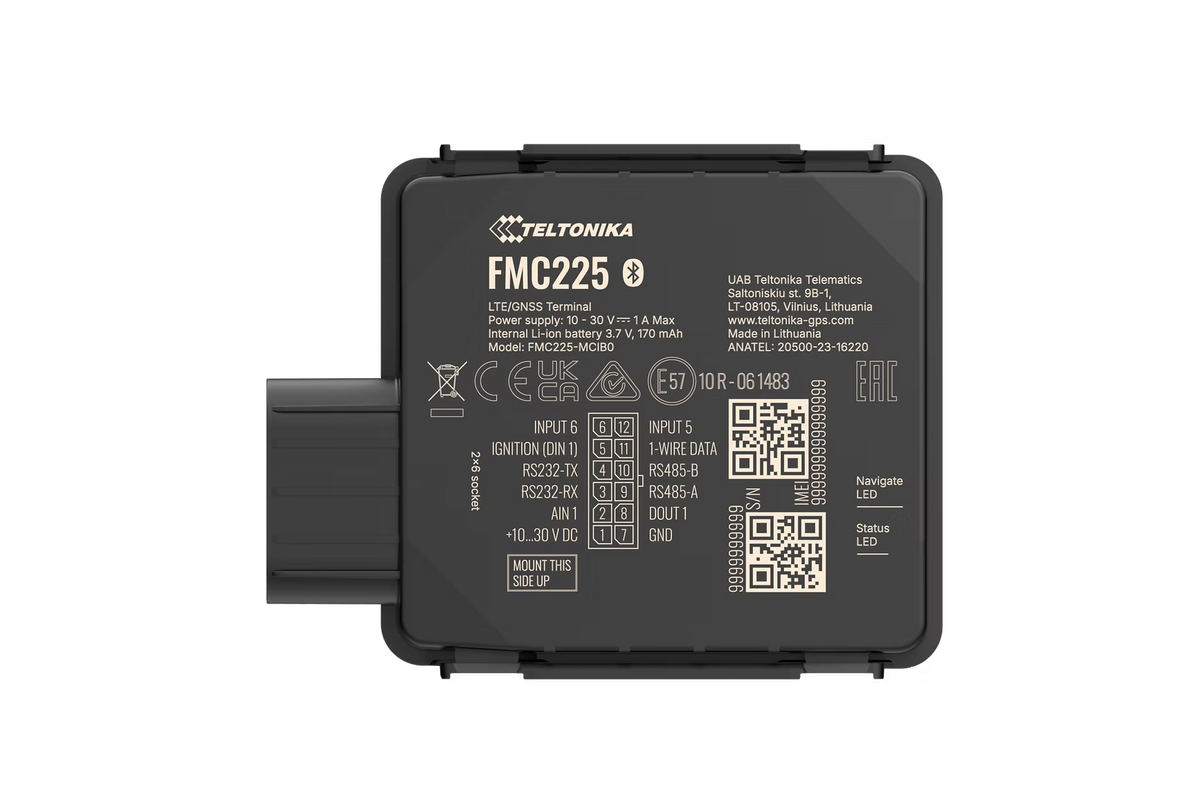

Techtonika FMC225 4G GPS Tracker – Rugged Dual SIM Vehicle & Fleet Tracking

Techtonika FMC225 4G GPS Tracker – Rugged Dual SIM Vehicle & Fleet Tracking

A$263.20
A$263.20
Sale Sold out

Vendor

GPS tracker store -Techtonika Autolink -

Sub total

A$263.20

Estimated delivery: 5-7 Days from order date.

Frequently Asked Questions

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View full details
About your query!
Description
Reviews

Overview

The Teltonika FMC225 is a premium, weatherproof GPS tracker engineered for robust performance in challenging environments. Featuring IP67-rated protection for water and dust resistance, 4G LTE Cat 1 connectivity with reliable 2G fallback, and advanced interfaces—including RS232 and RS485—this device delivers professional-grade tracking ideal for fleet, industrial, and emergency vehicle applications.

Ready to Use
Device comes preconfigured with a SIM card — simply install it and start tracking. Monthly service of $15 will apply after the first month.

Key Features

  • Water-Resistant & Durable
    Rated IP67, the FMC225 withstands dust ingress and temporary immersion, making it ideal for outdoor installation, construction sites, mining, agriculture, and utility vehicles.

  • Reliable Multi-Network Connectivity
    Equipped with LTE Cat 1 (up to 10 Mbps down / 5 Mbps up) and seamless fallback to 2G (GSM/GPRS), it ensures continuous connectivity across evolving network environments.

  • Enhanced GNSS Tracking & Bluetooth Support
    Features a 33-channel GNSS receiver supporting GPS, GLONASS, Galileo, BeiDou, QZSS, and AGPS with < 2.5 m CEP accuracy and high sensitivity (–165 dBm). Bluetooth 4.0 LE enables seamless integration with external sensors and devices.

  • Powerful Hardware Interfaces & Dual-SIM
    Includes RS232 and RS485 ports for external sensors (e.g., fuel flow meters, barcode scanners), along with digital inputs/outputs, CAN, 1-Wire, and a backup 170 mAh Li-Ion battery. Dual-SIM ensures cost-effective and consistent connectivity.

  • Smart Event Detection & Telematics
    Built-in features include green driving analytics, overspeed and idle alerts, crash and towing detection, immobilizer control, iButton reading, unplug detection, geofencing, trip logging, jamming detection, and more. Device management enabled via FOTA Web and Teltonika Configurator.

Technical Specifications

Spec Category Details
Cellular Connectivity LTE Cat 1 (bands vary by model), fallback to 2G; Dual-SIM support
GNSS Multi-constellation GPS/GLONASS/Galileo/BeiDou/QZSS, <2.5 m CEP, −165 dBm sensitivity, hot start < 1 s
Interfaces RS232, RS485, DI x2, DO x1, AI x1, CAN, 1-Wire, Bluetooth 4.0 LE, Micro-USB, LEDs
Battery 170 mAh Li-Ion backup battery (≈0.63 Wh)
Memory 128 MB internal flash (~422K records)
Power Input 10–30 V DC with overvoltage/reverse-polarity protection, internal fuse
Power Consumption Ultra Deep Sleep <4 mA; GPS Sleep <19 mA; Nominal <36 mA
Dimensions / Weight 70.5 × 67 × 25.6 mm (85 mm with connector), ~79.5 g
Environment –20 °C to +85 °C (device), –20 °C to +40 °C with battery; IP67 ingress rating
Certifications CE-RED, E-mark, RCM, RoHS, REACH, Anatel, TRA, CITC

Ideal Use Cases

  • Emergency & Utility Vehicles – Durable design and maintenance reminders help streamline operations in challenging environments.

  • Construction, Agriculture & Mining Fleets – Tough casing and serial interfaces allow integration with sensors and tools used in rugged settings.

  • Fleet Management & Rental Services – Seamless tracking, external sensor connectivity, and dual-SIM minimize downtime and connectivity gaps.
