Techtonika FMC230 4G GPS Tracker – Rugged IP67 Vehicle Tracker for Fleet
Techtonika FMC230 4G GPS Tracker – Rugged IP67 Vehicle Tracker for Fleet
Sub total
A$240.00Estimated delivery: 5-7 Days from order date.
Description
Overview

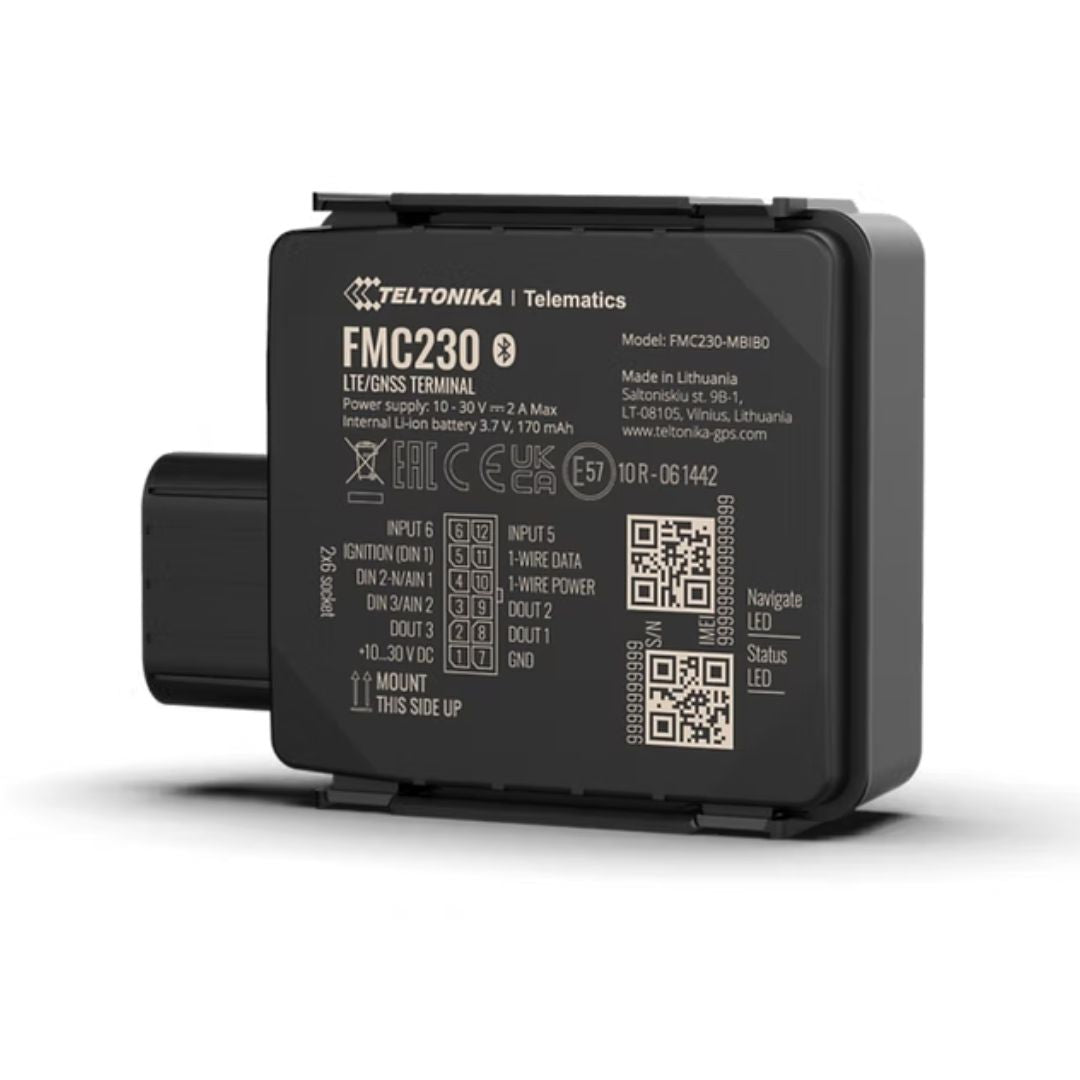

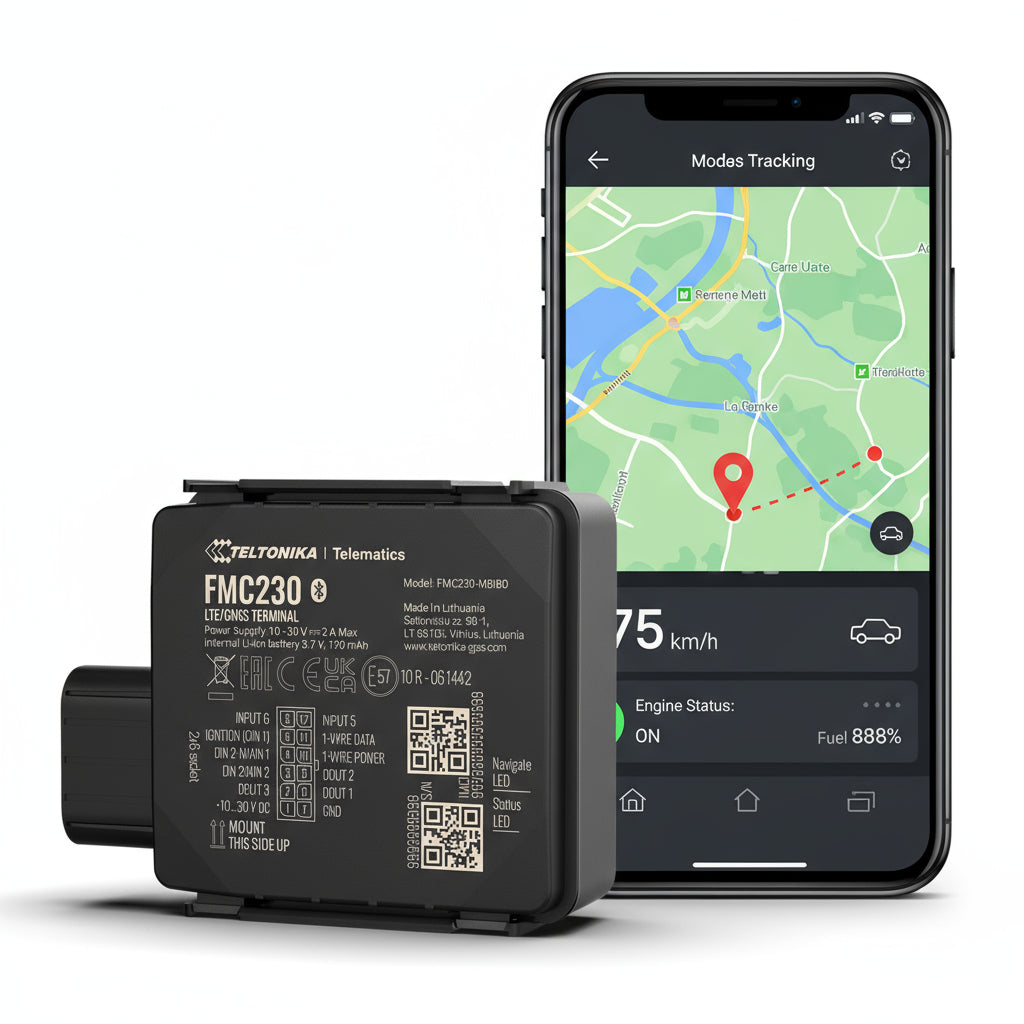

The Teltonika FMC230 is a robust, water- and dust-resistant GPS tracker that builds on the functionality of the FMC130, enhanced with an IP67-rated casing for unmatched durability. Featuring 4G LTE Cat 1 connectivity (with 2G fallback), GNSS, Bluetooth, and a suite of flexible input/output options, it's engineered for precision tracking in even the harshest environments—perfect for agriculture, construction, mining equipment, and trailers.
Key Features
Rugged IP67 Construction
Fully dust-tight and capable of withstanding temporary immersion—ideal for external mounting in muddy, wet, or dusty conditions.
Reliable 4G LTE Cat 1 + 2G Fallback
Ensures high-speed, consistent communication even in variable network conditions.
Multi-Constellation GNSS + Bluetooth LE
Supports GPS, GLONASS, BeiDou, Galileo, QZSS, and A-GNSS, offering position accuracy under 2.5 m CEP. Bluetooth 4.0 LE enables wireless sensor integration (e.g., beacons, temperature, humidity).
Integrated High-Gain Antennas & Backup Battery
Internal GNSS and cellular antennas for reliable signal reception. Includes a 170 mAh Li-ion battery for continued operation during power loss.
Flexible Interfaces
Equipped with multiple input/output options:
-
3 digital inputs (including 1 negative input)
-
2 analog inputs
-
2 impulse inputs
-
3 digital outputs (relay, LED, buzzer)
-
1-Wire interface (temperature, iButton)
-
CAN_RX & CAN_TX for vehicle data integration
-
2 status LEDs for quick visual feedback
Advanced Tracking & Smart Detection
Scenarios include overspeed, crash, towing, unplug alerts, green driving, ignitions, geofencing (auto/manual), jamming detection, virtual odometer, trip logging, and more.
Efficient Power Management
Offers multiple sleep modes—Ultra Deep Sleep (~<3 mA), Deep Sleep, Online Deep Sleep, GPS Sleep, and nominal power mode—for optimized power usage.
Technical Specifications
| Specification | Details |
|---|---|
| Dimensions / Weight | Approx. 70.5 × 67 × 25.6 mm (or 85 × 67 × 25.6 mm with connector); ~79 g |
| Operating Temperature | Without battery: –20 °C to +85 °C With battery: –20 °C to +60 °C Storage (with battery): –20 °C to +45 °C (1 month) / –20 °C to +35 °C (6 months) |
| Power Input & Protection | 10–30 V DC with overvoltage/reverse polarity protection, internal 3 A fuse |
| Memory | 128 MB internal flash (~422,400 records) |
| Certification | CE-RED, E-mark, RCM, Anatel, TRA, CITC, REACH, RoHS compliant |
Ideal Use Cases
-
Agriculture, Construction & Mining – Built to endure dust, mud, and immersion—perfect for rugged outdoor operations.
-
Trailer & Asset Monitoring – External mountable solution for real-time location tracking and security alerts in challenging environments.
-
Heavy-Duty Fleet Management – Supports remote immobilization, fuel monitoring, and driver ID (via iButton or BLE).
-
Utility & Waste Management – Enables environmental sensing via BLE beacons for proactive asset tracking.
