Techtonika FMC234 4G GPS Tracker – Extended Battery IP67 Vehicle Tracking

Techtonika FMC234 4G GPS Tracker – Extended Battery IP67 Vehicle Tracking

A$289.00
A$289.00
Sale Sold out

Vendor

GPS tracker store -Techtonika Autolink -

Sub total

A$289.00

Estimated delivery: 5-7 Days from order date.

Frequently Asked Questions

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View full details
About your query!
Description
Reviews

Overview

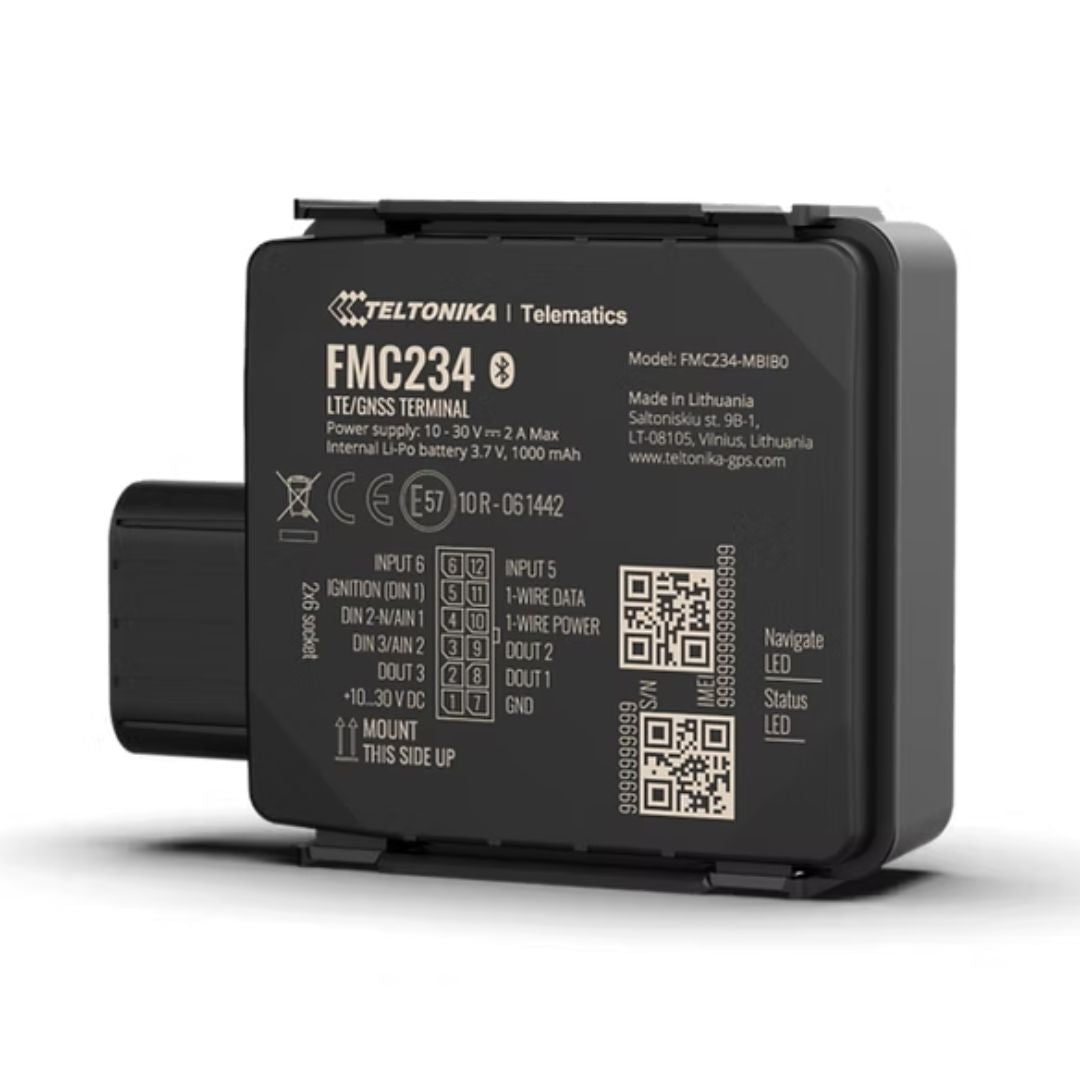

The Teltonika FMC234 is a robust and water-resistant vehicle tracker designed for maximum reliability in demanding environments. It combines 4G LTE Cat 1 connectivity (with GSM/GPRS fallback), a high-capacity 1000 mAh Li-Po backup battery, flexible input/output options, Bluetooth LE, and an IP67-rated casing, perfect for applications like stolen vehicle recovery, insurance telematics, trailer monitoring, and construction vehicle tracking.

Key Features

  • Extended Autonomous Operation
    Built-in 1000 mAh Li-Po battery ensures continuous operation for up to approximately 8 days even if external power is lost, making it ideal for remote or theft-prone setups

  • Durable IP67 Casing with Easy Installation
    Dust-tight and waterproof with an innovative click-type two-phase closing mechanism—no tools required for installation.

  • Reliable 4G LTE Cat 1 Connectivity
    Ensures fast, stable communication with fallback to 2G (GSM/GPRS), delivering up to 10 Mbps download, 5 Mbps upload, and robust SMS/data support.

  • Precise Multi-GNSS Tracking
    Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and AGPS with tracking sensitivity of –165 dBm, and delivers < 2.5 m CEP location accuracy.

  • Versatile I/O & Sensor Integration
    Interfaces include:

    • 3 digital inputs (1 negative)

    • 2 impulse inputs

    • 2 analog inputs

    • 3 digital outputs

    • 1-Wire for temperature or iButton

    • CAN RX/TX

    • Internal accelerometer, Bluetooth 4.0 LE, internal antennas, micro-USB port, dual LEDs, and Micro-SIM or eSIM support

  • Smart Telematics & Safety Scenarios
    Features eco-driving alerts, overspeed and crash detection, towing and unplug alerts, immobilizer control, virtual odometer, geofencing, jamming detection, and trip logging. Configurable via FOTA Web or Teltonika Configurator.

Technical Specifications

Spec Category Details
Battery 1000 mAh Li-Po (3.7 Wh); supports ~8 days standby
Ingress Protection IP67—dust-tight, water immersion safe
GNSS Performance 33 tracking channels; –165 dBm; <2.5 m position accuracy; <0.1 m/s velocity; hot start < 1 s
Cellular Bands 4G LTE Cat 1 & GSM/GPRS fallback; supported FDD/TDD bands (see spec sheet)
Power Input 10–30 V DC, with overvoltage & reverse polarity protection; internal 3 A fuse
Sleep Modes Ultra Deep Sleep <3 mA, Deep Sleep <5 mA, Online Deep <16 mA, GPS Sleep <18 mA
I/O Communication Extensive interfaces: digital, analog, impulse, CAN, 1-Wire, Bluetooth LE
Physical Dimensions 70.5 × 67 × 25.6 mm (85 mm with connector); weight ~91.8 g
Operating Temp. –20 °C to +85 °C (w/o battery); with battery: –20 °C to +60 °C
Memory 128 MB internal flash (~422K records)

Ideal Use Cases

  • Stolen Vehicle Recovery & Insurance Tracking – Trust reliable tracking even when power is cut.

  • Trailer & Asset Tracking – Ensures peace of mind in power-disconnected scenarios.

  • Construction & Heavy Equipment Monitoring – Rugged build resists dust, mud, and immersion.

  • Fleet Telematics & Logistics – Rich sensor integration and smart tracking upgrades operations.
