Techtonika FMM230 4G LTE Cat M1 GPS Tracker – Rugged Fleet & Car Tracking
Techtonika FMM230 4G LTE Cat M1 GPS Tracker – Rugged Fleet & Car Tracking
Sub total
A$179.00Estimated delivery: 5-7 Days from order date.
Description
Overview

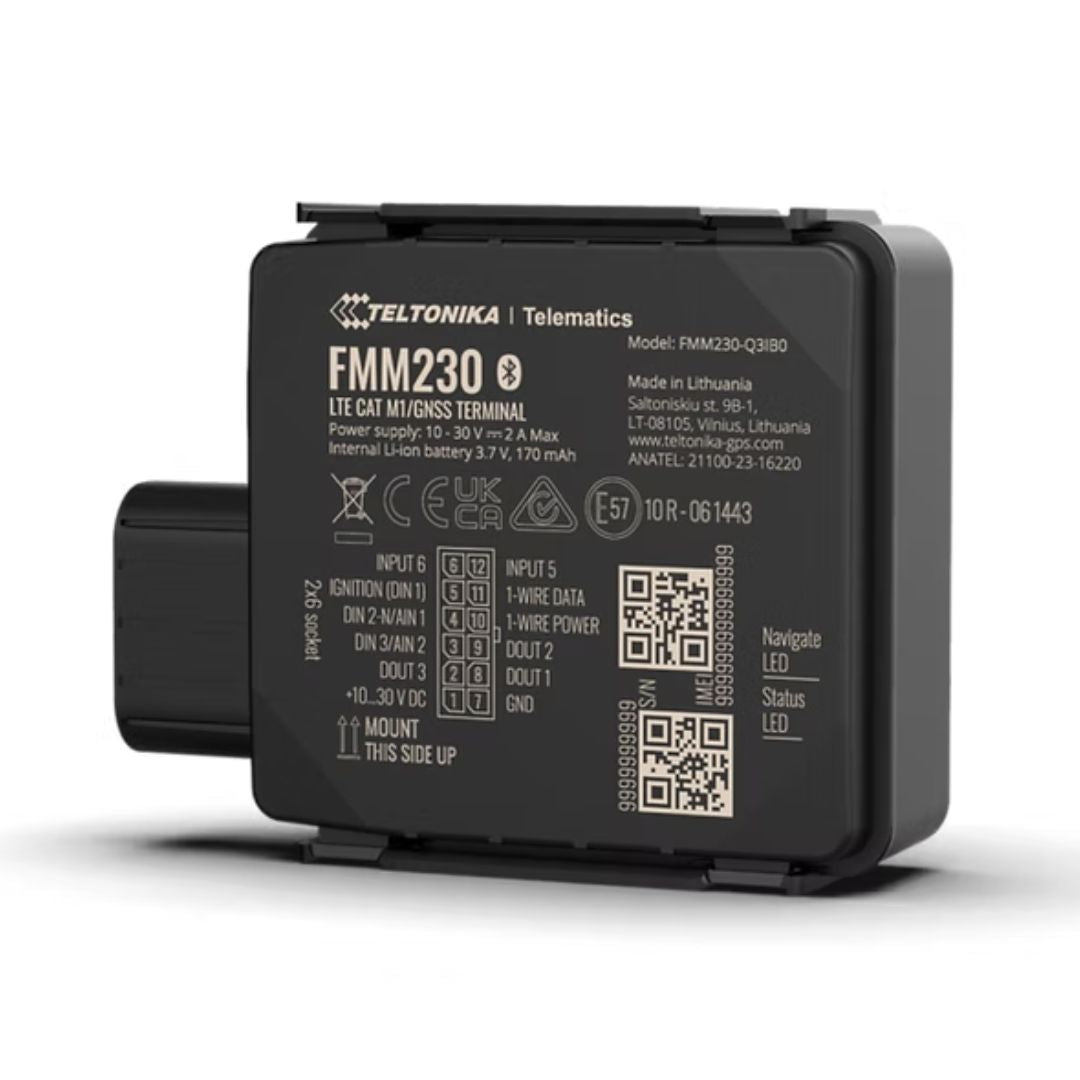

The Teltonika FMM230 is a robust, dust- and water-resistant GPS tracker designed for ultra-reliable performance in the toughest environments. Sporting LTE Cat M1, NB-IoT, and 2G (GSM/GPRS) fallback, it thrives in remote and challenging conditions. Its IP67-rated enclosure ensures durability for exterior mounting on vehicles or machinery, and it includes a flexible range of inputs/outputs, Bluetooth integration, and backup battery support.
Key Features
Built for Extreme Conditions
With IP67 certification, the FMM230 stands up to dust and temporary immersion in water—built for agriculture, construction, mining, and outdoor fleet use.
Reliable Multi-Network Connectivity
Ensures continuous operation via LTE Cat M1, NB-IoT, and fallback to 2G for maximum coverage.
Precise Multi-GNSS Tracking
Supports GPS, GLONASS, Galileo, BeiDou, QZSS, and A-GNSS. Delivers tracking with < 2.5 m CEP accuracy, fast hot start (< 1 s), and high sensitivity (–165 dBm).
Compact & Tool-Free Installation
Features a space-saving design and click-type two-phase closure—no tools required. Comes with standard and U-type cable options.
Bluetooth LE & Internal Sensor Suite
Built-in Bluetooth 4.0 LE enables pairing with temperature, fuel, or iButton sensors. Also features an accelerometer and internal high-gain antennas for GNSS and cellular connectivity.
Versatile Inputs & Outputs
Offers a comprehensive set of interfaces:
-
Digital: 3 inputs (1 negative)
-
Impulse: 2 inputs
-
Analog: 2 inputs
-
Digital outputs: 3
-
1-Wire for temperature/iButton, LVCAN RX/TX, dual status LEDs
Backup Battery & Low Power Modes
Integrates a 170 mAh Li-Ion battery and supports multiple sleep modes (Ultra Deep, Deep, Online Deep, GPS Sleep) for minimal power consumption.
Smart Telematics Features
Enables eco-driving analysis, towing, crash, unplug detection, geofencing, virtual odometer, immobilizer, and more. Configurable via FOTA Web or Teltonika Configurator.
Technical Specifications
| Specification | Details |
|---|---|
| Cellular Module | Quectel BG95-M3 (LTE Cat M1, NB-IoT, GSM/GPRS) |
| GNSS Accuracy | < 2.5 m CEP, < 0.1 m/s speed accuracy |
| Power Input | 10–30 V DC, overvoltage protection, 3 A fuse |
| Backup Battery | 170 mAh Li-Ion (~0.63 Wh) |
| Dimensions / Weight | 70.5 × 67 × 25.6 mm (85 mm w/ connector); ~55–75 g |
| Ingress Protection | IP67 |
| Sleep Mode Consumption | Ultra Deep Sleep < 3 mA (12 V) |
| Operating Temp. | –20 °C to +85 °C (without battery), –20 °C to +40 °C (with battery) |
Ideal Use Cases
-
Outdoor Fleet & Trailer Tracking – Ideal for vehicles and trailers operating in muddy, dusty, or wet environments.
-
Industrial Machinery & Equipment – Built tough for construction, agriculture, and mining applications.
-
Cold Chain & Asset Monitoring – BLE support allows connection with environmental sensors.
-
Emergency & Utility Vehicles – Reliable connectivity and smart alerts in remote and harsh locations.
