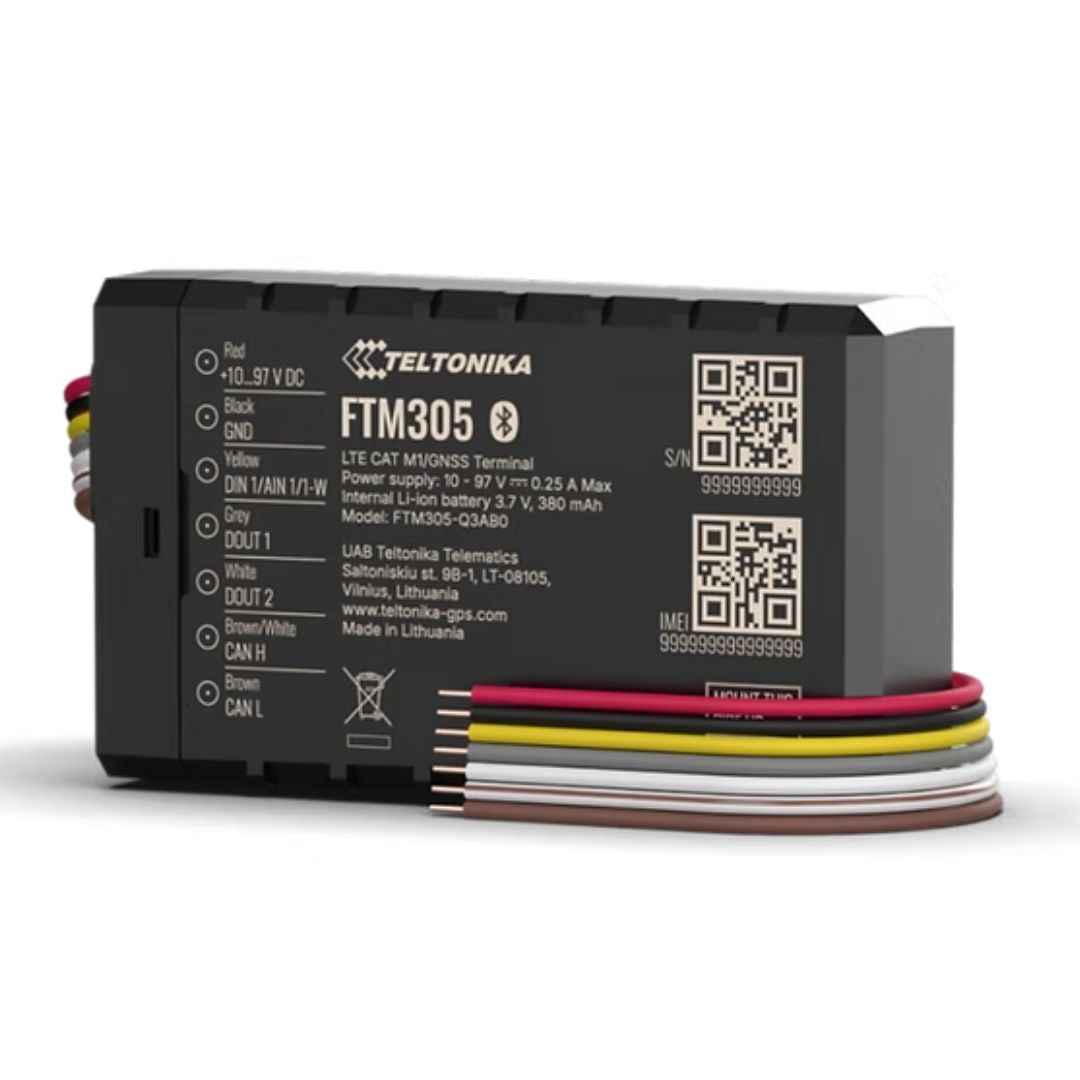

Techtonika FTM305 4G LTE Cat M1 GPS E-Mobility Tracker – Electric Fleet & Asset Tracking

Overview

The Teltonika FTM305 is a compact yet highly capable GPS tracker specifically designed for electric mobility applications like e-bikes, e-scooters, forklifts, and other high-voltage equipment. It features LTE Cat M1 (with NB-IoT and 2G fallback) connectivity, CAN data access, broad 10–97 V DC power tolerance, and rugged IP67 casing, offering robust and reliable performance for urban, industrial, and fleet environments.

Ready to Use
Device comes preconfigured with a SIM card — simply install it and start tracking. Monthly service of $15 will apply after the first month.

Key Features

• Accurate Multi-GNSS Tracking
  Utilizes a high-sensitivity 75-channel L1 GNSS receiver with support for GPS, GLONASS, Galileo, and BeiDou. Delivers precise positioning with < 1.8 m CEP accuracy and fast hot start (< 1 s).

• Advanced Cellular Connectivity
  Equipped with LTE Cat M1, NB-IoT, and fallback to GSM/GPRS. Uses the Quectel BG95 series (Q2/Q3/Q5 variants), supporting global frequency bands and data rates up to 588 kbps DL / 1.12 Mbps UL.

• Wide Voltage Compatibility
  Operates from 10 to 97 V DC, making it ideal for integration with high-voltage electric systems such as e-mobility platforms and industrial machinery.

• Reliable Backup Battery
  Built-in 380 mAh Li-ion battery (≈1.41 Wh) ensures continued operation during power interruptions.

• Robust, Compact Design
  Encased in an IP67-rated housing for complete dust and water protection. Small footprint (69 × 41 × 20.9 mm) and lightweight (76.8 g) suit tight, outdoor installations.

• Rich Interfaces & Sensor Integration
  Includes 1 CAN port, 1 digital input, 2 digital outputs, 1 analog input (future firmware), 1-Wire (future firmware), USB Type-C, LED indicators, internal high-gain antennas, Nano-SIM support, and on-board accelerometer. Bluetooth 5.x + LE support planned.

• Smart Telematics Scenarios
  Supports green driving, overspeed alerts, jamming, unplug, crash detection, and manual CAN data reading. Low-power sleep modes (Online Sleep, Deep Sleep, Power-Off Sleep) help conserve battery.

• Remote Management via FOTA & TCT
  Supports FOTA Web and Teltonika Configurator (TCT) for remote updates and configurations. Time synchronization via GNSS, NITZ, or NTP.

Technical Specifications

* Future firmware support

Ideal Use Cases

• E-Mobility Fleet Management – Optimize performance, logging, and maintenance for e-bikes, e-scooters, forklifts, and shuttles.

• High-Voltage Utility & Delivery Platforms – Reliable operation across high-voltage systems with precision tracking.

• Asset & Industrial Monitoring – Compact and durable architecture for harsh environments.
